Bullet Resistant Steel Plate - Ballistic Rated Armor Plate for Defense & Security

Tianjin TISCO International Trade Co., Ltd.

Verified Custom manufacturer 5yrs

Bullet resistant steel plate image thumbnail

Technical Specifications of Bullet Resistant Steel Plate

Property	Parameter	Description
Product Name	Bullet Resistant Steel Plate	High-hardness armored steel for ballistic protection
Material Grade	AR500 / AR550 / MIL-A-46100	International ballistic steel standards
Standard Compliance	NIJ Level III/IV, EN 1063, MIL-DTL-46100E	Meets military and civilian ballistic standards
Carbon (C)	0.28-0.35%	Carbon content for high hardness
Manganese (Mn)	0.80-1.50%	Improves hardenability and toughness
Chromium (Cr)	0.50-1.20%	Enhances wear resistance
Nickel (Ni)	0.50-1.00%	Improves impact resistance
Molybdenum (Mo)	0.15-0.50%	Increases strength and hardness
Hardness	477-534 HBW (AR500) / 534-601 HBW (AR550)	Brinell hardness for ballistic protection
Tensile Strength	≥1250 MPa	Minimum tensile strength per MIL-A-46100
Yield Strength	≥1070 MPa	High yield strength for impact resistance
Elongation	≥8%	Ductility in 50mm gauge length
Thickness Range	4mm - 100mm	Available thickness options for different threat levels
Width Range	1000mm - 3000mm	Standard and custom widths
Surface Finish	Hot rolled, shot blasted, painted	Multiple surface treatment options
Ballistic Protection	NIJ Level III/IV, 7.62mm NATO, .50 BMG	Protection against rifle and armor-piercing rounds
Application	Military vehicles, armored cars, shooting ranges, security barriers	Typical application industries
Certification	NIJ 0108.01, EN 1063, MIL-DTL-46100E, ISO 9001	Quality and ballistic certifications provided
Packaging	Steel strapping, waterproof paper, wooden crate	Standard export packaging for heavy plates
MOQ	5 tons	Minimum order quantity

Bullet Resistant Steel Plate - Ballistic Rated Armor Plate for Defense & Security

Bullet resistant steel plate represents a specialized category of high-hardness armor-grade steel engineered to withstand ballistic impacts and provide critical protection in security-sensitive applications. Manufactured through controlled rolling and heat treatment processes, this premium-grade protective material serves law enforcement, military installations, armored vehicle manufacturers, and secure facility operators requiring certified ballistic resistance. With tensile strength exceeding 1,400 MPa and hardness ratings from HB 360 to HB 600 depending on protection level, bullet resistant steel plate delivers reliable defense against various threat levels while maintaining structural integrity under extreme conditions.

What is Bullet Resistant Steel Plate?

Bullet resistant steel plate is a specialized armor-grade steel alloy manufactured to meet stringent ballistic performance standards such as NIJ 0108.01, EN 1063, and STANAG 4569. Through precise alloying with elements including chromium, molybdenum, and boron, combined with quenching and tempering heat treatment, these plates achieve exceptional surface hardness of 500-600 HBW while retaining adequate toughness to prevent brittle failure upon impact.

Bullet Resistant Steel Plate Technical Specifications

Standard ballistic steel plates are produced in thicknesses ranging from 4mm to 50mm with typical dimensions of 1,000mm × 2,000mm to 3,000mm × 12,000mm. Chemical composition includes carbon content of 0.28-0.35%, manganese 0.90-1.50%, and strategic additions of nickel (0.50-1.00%) and chromium (0.40-0.80%) per ASTM A514 Grade F requirements. Density measures 7.85 g/cm³ at ambient temperature, with yield strength values exceeding 1,100 MPa and impact energy absorption capacity of 27 Joules at -40°C according to Charpy V-notch testing.

Why Choose Our Bullet Resistant Steel Plate

Our factory-direct ballistic steel plates undergo rigorous third-party testing to verify compliance with international protection standards including UL 752 Level 8 and FB4-FB7 classifications. Each production batch receives mill test certificates documenting mechanical properties, ballistic performance data, and ultrasonic inspection results confirming internal soundness. With ISO 9001:2015 certified manufacturing processes and strategic partnerships with defense contractors across 47 countries, we deliver cost-effective armor solutions backed by comprehensive technical support and expedited lead times of 25-35 days for standard specifications.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ for bullet resistant steel plate is 5 metric tons per specification. For prototype development or testing requirements, we accommodate reduced quantities of 1-2 tons with adjusted pricing. Mixed-thickness orders meeting the 5-ton threshold qualify for standard mill-direct rates.

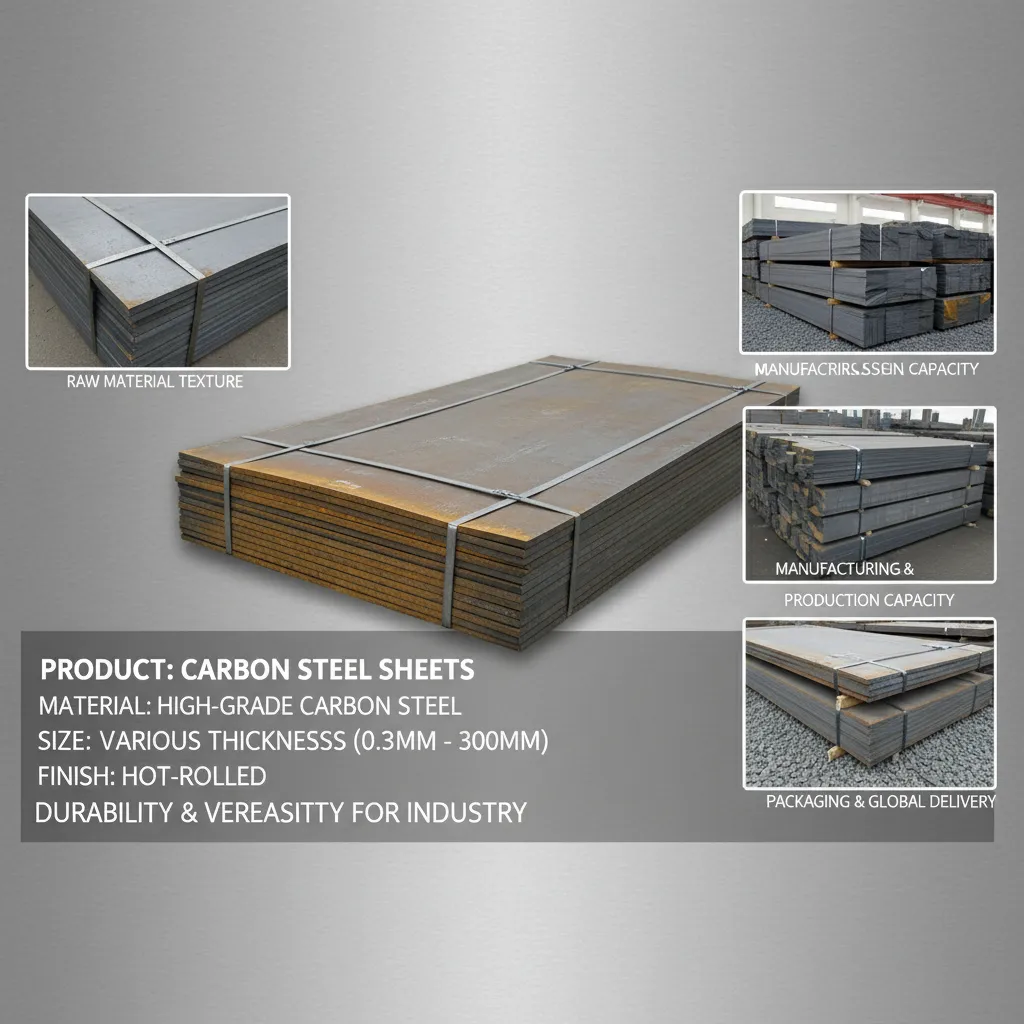

Bullet resistant steel plate supplier

Do you provide material test certificates?

Yes, every shipment includes EN 10204 3.1 mill test certificates detailing chemical composition analysis, mechanical property results, heat treatment records, and ballistic test reports conducted per NIJ or EN standards. Third-party inspection arrangements through SGS or Bureau Veritas are available upon request.

What is the typical delivery time?

Standard lead time for in-stock thicknesses (6mm, 8mm, 10mm) is 15-20 days FOB origin. Custom rolling of non-standard dimensions requires 30-40 days including heat treatment cycles and quality verification. Expedited production for urgent defense projects can be arranged with 10-15 day delivery for premium charges.

Can you cut to custom sizes?

Our facility provides precision plasma cutting, laser cutting, and waterjet cutting services with tolerances of ±2mm for dimensions up to 3,000mm. Complex geometries including curved panels for vehicle armor applications are manufactured using CNC forming equipment. Edge beveling and hole drilling operations are included at no additional cost for orders exceeding 10 tons.

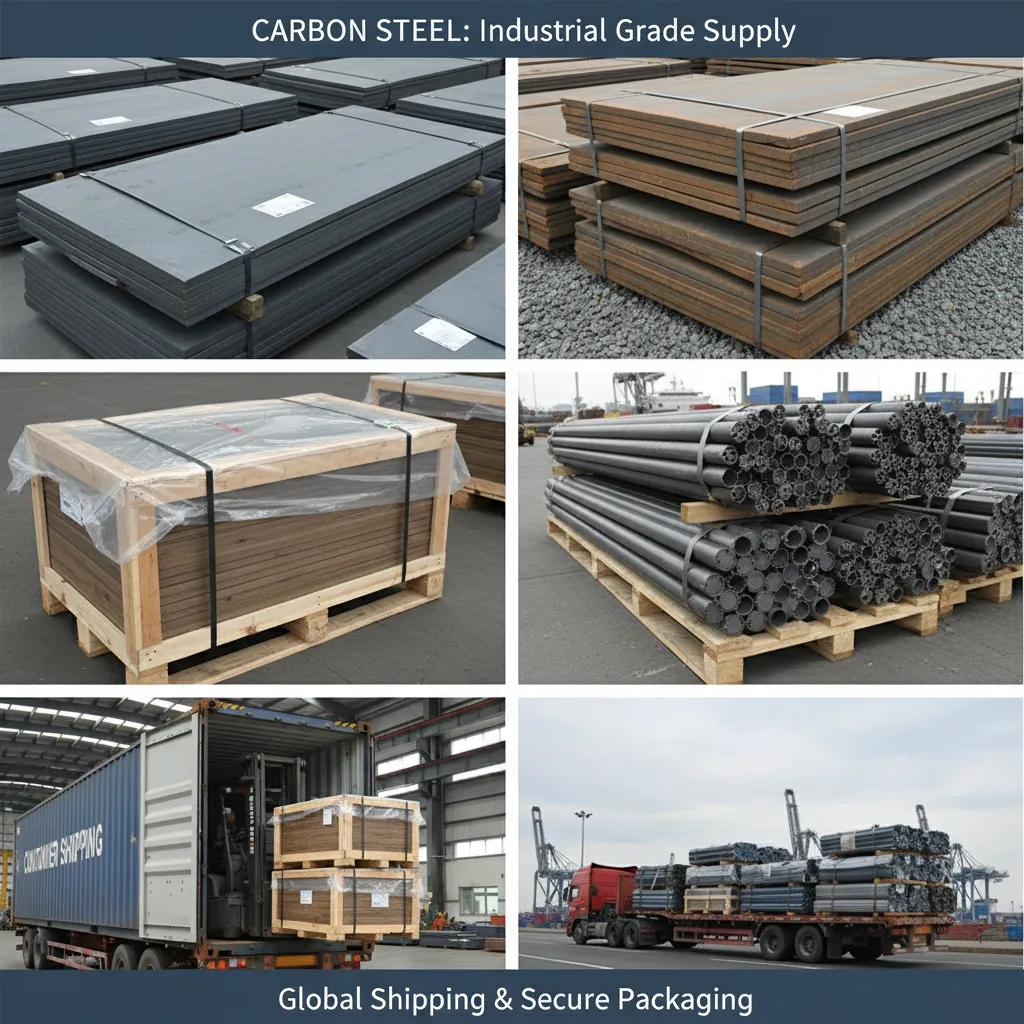

Bullet resistant steel plate manufacturer

Get a Competitive Quote for Bullet Resistant Steel Plate

Contact our ballistic steel specialists today to receive detailed pricing for your protection level requirements, whether for perimeter security barriers, cash-in-transit vehicles, or critical infrastructure hardening projects. Our engineering team provides complimentary design consultation to optimize material selection and thickness specifications for your specific threat assessment. Request your quote now with delivery terms tailored to your project timeline and budget parameters.

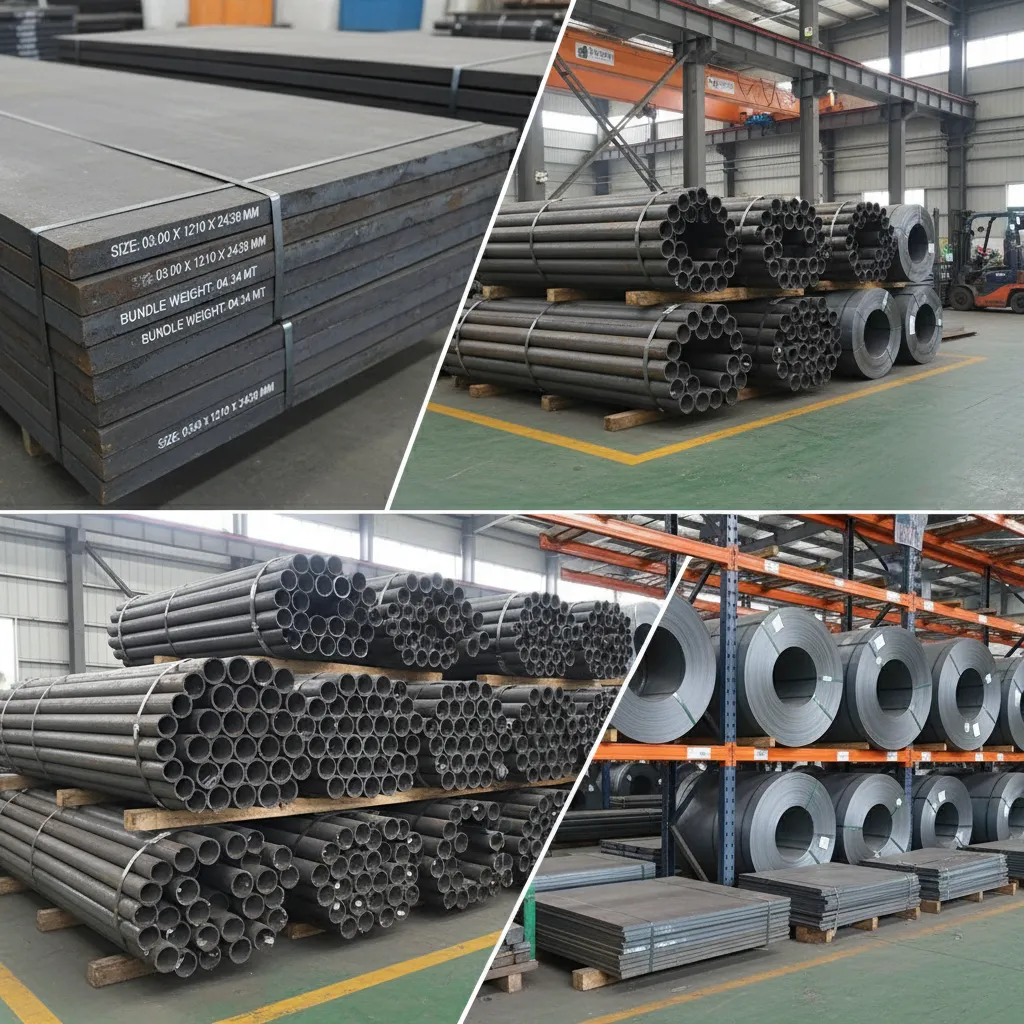

Bullet resistant steel plate China
